301 - 3 1/8" 50 ohm
| Name | Description | Category | ||
|---|---|---|---|---|
|
311-580-2 | 3 1/8" 50 ohm to 7-16 DIN male plate reducer. 1.6lbs | Transition to DIN 7-16 |
|
|
311-580-1 | 3 1/8" 50 ohm to 7-16 DIN female plate reducer. 1.6lbs | Transition to DIN 7-16 |
|
|
311-066 | 3 1/8" 50 ohm EIA to type 'N' plate reducer. 1.47lbs | Transition to Type 'N' |
|
|

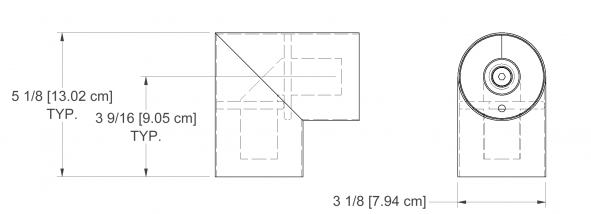

311-025 | 3 1/8" 50 ohm aluminum elbow, 90 degree, unflanged, reinforced outside. 1.35lbs | Unflanged Elbows |
|
|
311-009 | 3 1/8" EIA swivel flange, aluminum, for welding. .528lbs. | Swivel Flange |
|
|
301-U45 | Short Assembly, 3 1/8" 50 Ohm, Unflanged Female Port. 2.43lbs. | Coaxial Short |
|
|
301-U15 | Port Cover 3 1/8" Unflanged Port. 1.56lbs. | Line Cover |
|
|
301-SF2-000 | 3 1/8" 50 ohm EIA line assembly of customer specified length, flanged both ends with one swivel flange: Includes anchor insulator connector, "O" ring, hardware. 4.5lbs plus 2.6lbs per foot. | Flanged Line Sections |
|
