601 - 6 1/8" 50 ohm
| Name | Description | Category | ||
|---|---|---|---|---|
|
601-078 | 6 1/8" 50 ohm EIA adapter, male to male, with fixed flanges and unsupported inner conductor. Includes "O" ring gasket and hardware. 11lbs. | Adapter Male to Male |
|
|
601-080 | 6 1/8" 50 ohm end seal assembly with NPT gas inlet port. Includes "O" ring gasket and hardware. 21lbs. | End Seal |
|
|
601-086 | 6 1/8" transformer, single channel, quarter wave, 50 ohm to 75 ohm, channels 7-13. Includes anchor insulator connectors, "O" ring, and hardware. 28.5 lbs | Transformers VHF |
|
|
601-086-WB | 6 1/8" transformer, wide band, three quarter wave, 50 ohm to 75 ohm, high band VHF 174Mhz-216Mhz. Includes anchor insulator connectors, "O" ring, and hardware. 40 lbs | Transformers VHF |
|
|

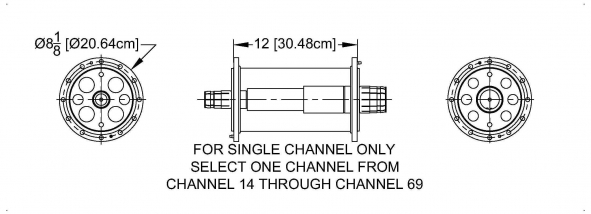

601-087 | 6 1/8" transformer, single channel, quarter wave, 50 ohm to 75 ohm, channels 14-69. Includes anchor insulator connectors, "O" ring, and hardware. 22 lbs | Transformers UHF |
|
|
601-088-WB | 6 1/8" transformer, wide band, five quarter wave, 50 ohm to 75 ohm, high band UHF 470Mhz-806Mhz. Includes anchor insulator connectors, "O" ring, and hardware. 35 lbs | Transformers UHF Wide Band |
|
|
601-138-3 | 6 1/8" 50 ohm patch panel, manual, 3 pole, unpressurized. Includes 1 "U" link with handles, anchor insulator connectors with anti-splitting devices, line clamps, screwdriver. 77.5lbs. | Patch Panels |
|
|
601-138-4 | 6 1/8" 50 ohm patch panel, manual, 4 pole, unpressurized. Includes 2 "U" links with handles, anchor insulator connectors with anti-splitting devices, line clamps, screwdriver. 119.8lbs. | Patch Panels |
|
