601 - 6 1/8" 50 ohm
Category:
Flanged Line Sections

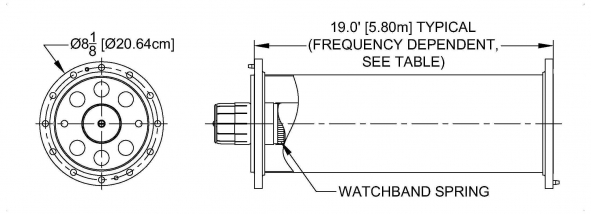

6 1/8" 50 ohm 19' optimized expansion line assembly, flanged: Includes "O" ring, hardware. Used on FM 96.1 - 99.9 138.3lbs.
Category:
Flanged Line Sections
6 1/8" 50 ohm 19.5' optimized expansion line assembly, flanged: Includes "O" ring, hardware. Used on TV CH 9, 10, 13, 17, 21, 25, 26, 29, 30, 33, 34, 37, 38, 42, 46, 50, 54, 58, 59, 62, 63 and 67. 141.7lbs.
Category:
Flanged Line Sections
6 1/8" 50 ohm 19.75' optimized expansion line assembly, flanged: Includes "O" ring, hardware. Used on TV CH 16, 20, 24, 28, 32, 36, 40, 41, 45, 49, 53, 57, 61, 65, 66 and 69. Weight 143.3lbs.
Category:
Flanged Line Sections
6 1/8" 50 ohm 20' optimized expansion line assembly, flanged: Include "O" ring, hardware. Used on TV CH 7, 8, 11, 12, 14, 15, 18, 19, 22, 23, 27, 31, 35, 39, 43, 44, 47, 48, 51, 52, 55, 56, 60, 64 and 68. 145lbs.
Category:
Fixed Flange
6 1/8" EIA fixed flange, brass, with silver solder ring insert, for silver brazing. 3.4lbs.
Category:
Swivel Flange
6 1/8" EIA swivel flange, brass, with silver solder ring insert, for silver brazing. 3.5lbs.
Category:
Anchor Insulator Connector
6 1/8" 50 ohm EIA anchor insulator connector with anti-splitting device, spring loaded, silver plated. 2.8lbs.
6 1/8" 50 ohm anchor insulator connector, expansion type, for use as a spare with 601-007 expansion lines only. 3lbs.
