301 - 3 1/8" 50 ohm
| Name | Description | Category | ||
|---|---|---|---|---|
|
301-042-8 | 3 1/8" lateral brace for use at base of tower. Includes two line clamps. 2.31lbs. | Hanger Assemblies Outside (for Tower) |
|
|
301-045 | 3 1/8" 50 ohm flanged short assembly female. 4lbs | Coaxial Short |
|
|
301-050 | 3 1/8" 50 ohm gas barrier with "O" ring gasket, 2 1/2" hardware, 1/8" NPT gas inlet port. 4.5lbs. | Gas Barriers |
|
|
301-050-HD | 3 1/8" 50 ohm gas barrier with "O" ring gasket, 3 1/4" hardware, (4)1/8" NPT gas inlet ports, 2 on each side. 7lbs | Gas Barriers |
|
|
301-059 | Reducer, 3 1/8" 50 ohm EIA to type "N" female, swivel flange, 1/8" NPT gas inlet port. Includes anchor insulator assembly, "O" ring and hardware. 3.02lbs. | Transition to Type 'N' |
|
|

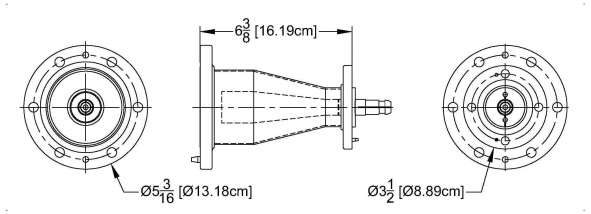

301-064 | Reducer taper, flanged: 3 1/8" 50 ohm to 1 5/8" 50 ohm. Includes 1 5/8" anchor insulator connector, "O"ring, hardware. 3lbs. | Reducer to Smaller Rigid Line Size |
|
|
301-064-46-1 | Reducer taper unflanged 3 1/8" to 1 5/8" supplied with connectors, for indoor use. 3lbs. | Reducer to Smaller Rigid Line Size |
|
|
301-065 | Step reducer, flanged: 3 1/8" 50 ohm step reducer, "plate" type: 3 1/8" 50 ohm to 1 5/8" 50 ohm. Includes "O" rings, hardware. 5.3lbs. | Reducer to Smaller Rigid Line Size |
|
