Hanger Assemblies Outside (for Tower)

  • Filters
7/8" wall anchor plate, single line. Includes line clamp. One plate required for each side of wall .96lbs
+
1 5/8" fixed hanger, single line. Includes line clamps and hardware. 9/16" mounting hole. Use one fixed hanger at top of tower for ea. 300 ft of vertical run, (min. requirement, 2 hangers). 1.25lb.
+
1 5/8" horizontal suspension hanger, single line, stainless steel. Supports 10 ft of horizontal run. 7.7lbs.
+

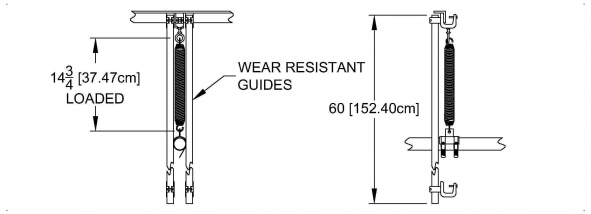

1 5/8" vertical spring suspension hanger, single line, stainless steel. Includes line clamps and hardware. 9/16" mounting hole. 3.17lbs.
+

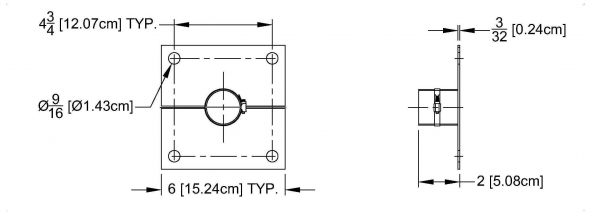

1 5/8" wall anchor plate, single line. Includes line clamp. One plate required for each side of wall. 2.63lbs.
+
1 5/8" lateral brace for use at base of tower. Includes two line clamps. 3lbs.
+
3 1/8" fixed hanger, single line. Includes line clamps and hardware. 9/16" mounting hole. Use one fixed hanger at top of tower for ea. 400 ft of vertical run, (min. requirement, 2 hangers). 2.75lbs
+
3 1/8" 3 point suspension hanger, single line, stainless steel. Supports 10 ft of horizontal run. 5.8lbs.
+
