Hanger Assemblies Outside (for Tower)

  • Filters
3 1/8" 4 point suspension hanger, dual line, stainless steel. Supports 10 feet of horizantal run. 6.5lbs.
+
Fixed hanger, dual line. Includes line clamps and hardware. 9/16" mounting hole. 2.5lbs.
+
3 1/8" vertical spring suspension hanger, single line, stainless steel. Includes line clamps and hardware. 9/16" mounting hole. 2.85lbs.
+

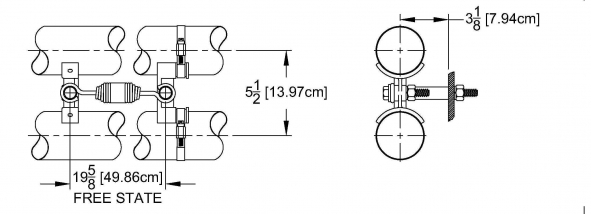

3 1/8" hanger, dual spring suspension. Includes line clamps and hardware. 9/16" mounting hole. 4.5lbs.
+
3 1/8" wall anchor plate, single line. Includes line clamp. One plate required for each side of wall. 3.25lbs.
+
3 1/8" wall anchor plate, dual line. Includes line clamp. One plate required for each side of wall. 5.5lbs.
+
3 1/8" lateral brace for use at base of tower. Includes two line clamps. 2.31lbs.
+
4 1/16" fixed hanger, single line. Includes line clamps and hardware. 9/16" mounting hole. Use one fixed hanger at top of tower for ea. 400 ft of vertical run, (min. requirement, 2 hangers). 5lbs.
+
