Hanger Assemblies Outside (for Tower)
| Name | Description | Category | ||
|---|---|---|---|---|
|

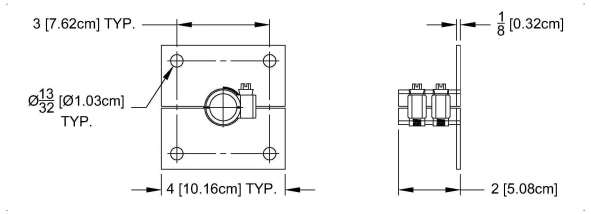

101-042-5 | 7/8" wall anchor plate, single line. Includes line clamp. One plate required for each side of wall .96lbs | Hanger Assemblies Outside (for Tower) |
|
|

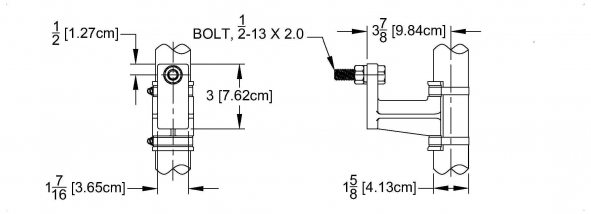

201-042-1 | 1 5/8" fixed hanger, single line. Includes line clamps and hardware. 9/16" mounting hole. Use one fixed hanger at top of tower for ea. 300 ft of vertical run, (min. requirement, 2 hangers). 1.25lb. | Hanger Assemblies Outside (for Tower) |
|
|
201-042-17 | 1 5/8" horizontal suspension hanger, single line, stainless steel. Supports 10 ft of horizontal run. 7.7lbs. | Hanger Assemblies Outside (for Tower) |
|
|
201-042-3 | 1 5/8" vertical spring suspension hanger, single line, stainless steel. Includes line clamps and hardware. 9/16" mounting hole. 3.17lbs. | Hanger Assemblies Outside (for Tower) |
|
|
201-042-5 | 1 5/8" wall anchor plate, single line. Includes line clamp. One plate required for each side of wall. 2.63lbs. | Hanger Assemblies Outside (for Tower) |
|
|
201-042-8 | 1 5/8" lateral brace for use at base of tower. Includes two line clamps. 3lbs. | Hanger Assemblies Outside (for Tower) |
|
|
301-042-1 | 3 1/8" fixed hanger, single line. Includes line clamps and hardware. 9/16" mounting hole. Use one fixed hanger at top of tower for ea. 400 ft of vertical run, (min. requirement, 2 hangers). 2.75lbs | Hanger Assemblies Outside (for Tower) |
|
|
301-042-17 | 3 1/8" 3 point suspension hanger, single line, stainless steel. Supports 10 ft of horizontal run. 5.8lbs. | Hanger Assemblies Outside (for Tower) |
|
