401 - 4 1/16" 50 ohm

  • Filters
4 1/16" 50 ohm 20' line assembly, random pin spacing, flanged: Includes anchor insulator connector with anti-splitting device, "O" ring, hardware. 83lbs.
+
4 1/16" 50 ohm line assembly of customer specified length, flanged both ends: Includes anchor insulator connector with anti-splitting device, "O" ring, hardware. 6lbs plus 4lbs per foot.
+
4 1/16" 50 ohm Spectraline Broadband expansion line assembly, flanged: Includes, "O" ring, hardware.
+
4 1/16" 50 ohm line assembly of customer specified length, unflanged, no connector or hardware. 3.8lbs/ft.
+
Category: Fine Matcher
4 1/16" 50 Ohm UHF pressurized 4 probe tuning line section, Specify length and Frequency. Includes anchor insulator with anti-splitting device, "O" ring and hardware.
+
4 1/16" 50 ohm 20' line assembly, one end flanged: Includes anchor insulator connector with anti splitting device, "O" ring, hardware. 79lbs. @ 20 feet
+

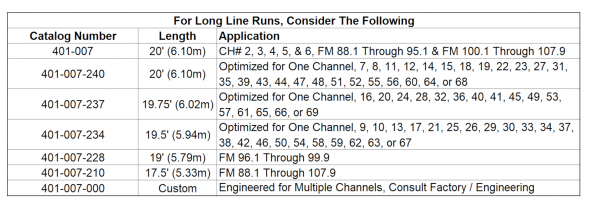

4 1/16" 50 ohm 20' expansion line assembly, random pin spacing, flanged: Includes, "O" ring, hardware. Used on: TV CH 2 - 6, FM 88.1 - 95.9, FM 100.1 - 107.9, no freq. specified. 84lbs.
+
4 1/16" 50 ohm 17.5' optimized expansion line assembly, flanged: Includes "O" ring, hardware. Used on: Full FM Coverage. 74lbs.
+
