775 - 7 3/16" 75 ohm

  • Filters
7 3/16" 75 ohm Industry Standard line assembly of customer specified length, flanged both ends: Includes anchor insulator connector, "O" ring, hardware. 14.9lbs plus 7.6lbs per foot.
+
7 3/16" 75 ohm Spectraline Broadband expansion line assembly, flanged: Includes, "O" ring, hardware.
+
Category: Fine Matcher
7 3/16" 75 Ohm UHF Pressurized 4 probe tuning line section, Specify length and Frequency. Includes acchor insulator with anti-splitting device, "O" ring and hardware.
+
7 3/16" 75 ohm 20' line assembly, one end flanged: Includes anchor insulator connector with anti splitting device, "O" ring, hardware.
+
7 3/16" 75 ohm 20' expansion line assembly, random pin spacing, flanged: Includes, "O" ring, hardware. Used on: TV CH 2 - 6, FM 88.1 - 95.9, FM 100.1 - 107.9, no freq. specified. 166lbs.
+
7 3/16" 75 ohm 17.5' optimized expansion line assembly, flanged: Includes "O" ring, hardware. Used on: Full FM Coverage. 147lbs.
+

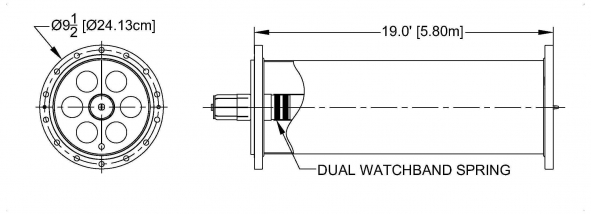

7 3/16" 75 ohm 19' optimized expansion line assembly, flanged: Includes "O" ring, hardware. Used on FM 96.1 - 99.9. 157.lbs.
+
7 3/16" 75 ohm 19.5' optimized expansion line assembly, flanged: Includes "O" ring, hardware. Used on TV CH 9, 10, 13, 17, 21, 25, 26, 29, 30, 33, 34, 37, 38, 42, 46, 50, 54, 58 and 59. 160lbs.
+
