801 - 8 3/16" 75 ohm
| Name | Description | Category | ||
|---|---|---|---|---|
|

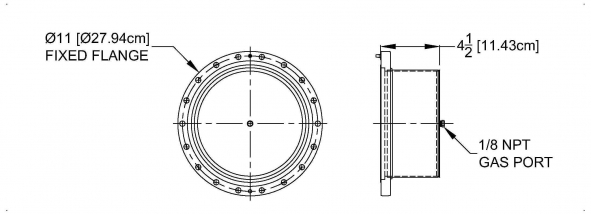

801-015 | 8 3/16" cover cap with 1/8" NPT gas inlet plug. 11lbs. | Line Cover |
|
|
801-021 | 8 3/16" 75 ohm elbow, 90 degree, swivel flanged, reinforced inside and outside. Includes anchor insulator connector with anti-splitting device, "O" ring, hardware. 55.5lbs. | Flanged Elbows |
|
|
801-023 | 8 3/16" 75 ohm elbow, 90 degree, swivel flanged, unequal leg, reinforced inside and outside. Includes anchor insulator connector with anti-splitting device, "O" ring, hardware. 65.4lbs. | Flanged Elbows |
|
|
801-024 | 8 3/16" 75 ohm Spectraline Broadband elbow, 90 degree, swivel flanged, reinforced inside and outside. Includes anchor insulator connector with anti-splitting device, "O" ring, hardware. 61.4lbs. | Flanged Elbows |
|
|
801-042-1 | 8 3/16" Vertical fixed hanger, single line. Includes line clamps and hardware. Use one fixed hanger at top of tower for ea. 400 ft of vertical run, (min. requirement, 2 hangers). 4.4lbs. | Hanger Assemblies Outside (for Tower) |
|
|
801-042-12 | 8 3/16" slip hanger, 41 19/64" stud mounted. 6.8lbs. | Hanger Assemblies Indoor |
|
|
801-042-17 | 8 3/16" 3-point suspension hanger, single line, stainless steel. Supports 10 ft of horizontal run. 8lbs. | Hanger Assemblies Outside (for Tower) |
|
|
801-042-19 | 8 3/16" horizontal fixed hanger. 4.1lbs | Hanger Assemblies Indoor |
|
